ALI Certified and Validated Battery-Operated Mobile Column Lift
<
>
ML-6045BC
MAXIMUM LIFTING CAPACITY 99,000 LBS.
SPECIFICATIONS LISTED BELOW
Features
Specifications
Installation and Parts
ALI Certified and Validated Battery-Operated Mobile Column Lift. Your assurance of quality and safety.
MAXIMA's® 99,000 LB. Battery-Operated Mobile Column Lift System Specifications
Maximum Lift Capacity: 99,000 LBS. / 44,900 KL.
Lifting Capacity Per Column: 16,500 LB. / 7,500 KL

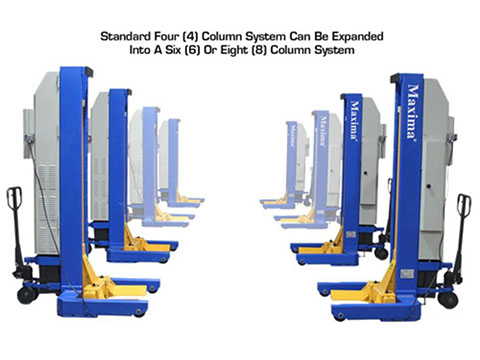

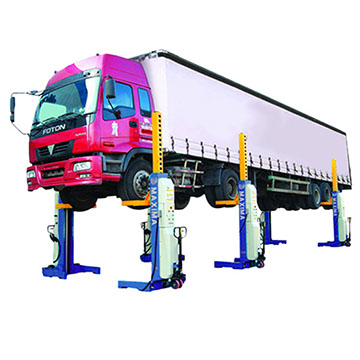

Column Configuration: Single / Pair / Four / Six
Max. Lifting Height: 67" / 170 CM
Lifting Time with Maximum Load: 95 Seconds
Lowering Time with Maximum Load: 100 Seconds

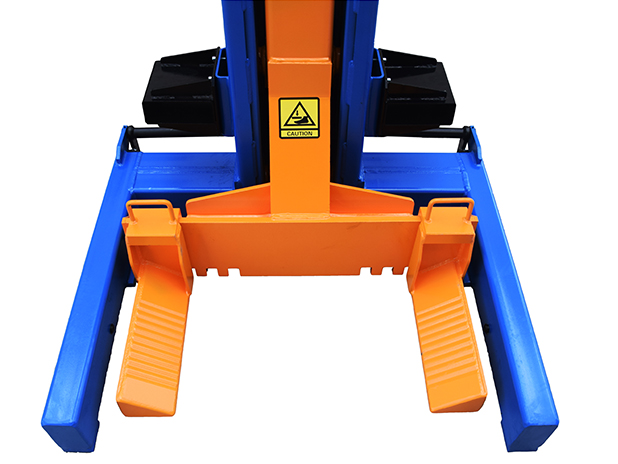

Carriage Type: Adjustable
Min Tire Diameter: 19" / 43 CM
Max Tire Diameter: 44" / 112 CM

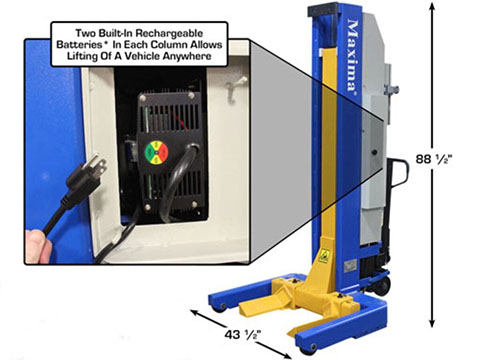

Power Supply: Dual 12V Industrial Grade Deep Cycle Battery with 120V Battery Charging System
Power Unit: 24V DC Electric Hydraulic
Motor: 2.2 Kw 24V DC motor with two batteries per column
Shipping Weight Per Column: 1,600 LB. / 730 KL. each
Shipping Dimensions: 49"L x 47"W x 89"H / 125 x 119 x 226 cm
2 Year Limited Warranty
Battery-Operated Mobile Column Lift System
Battery-Operated Mobile Column Lift System Manual
Download
Shipping, Unpacking, Installation, and Operation Training Video
