ALI Certified and Validated Battery-Operated Mobile Column Lift

ML-4034BC

MAXIMUM LIFTING CAPACITY 74,000 LBS.
SPECIFICATIONS LISTED BELOW

ML-4030BC

MAXIMUM LIFTING CAPACITY 66,000 LBS.

ML-4034BC

MAXIMUM LIFTING CAPACITY 74,000 LBS.

ML-6045BC

MAXIMUM LIFTING CAPACITY 99,000 LBS.

ML-6051BC

MAXIMUM LIFTING CAPACITY 111,000 LBS.

Features

Specifications

Installation and Parts

ALI Certified and Validated Battery-Operated Mobile Column Lift. Your assurance of quality and safety.

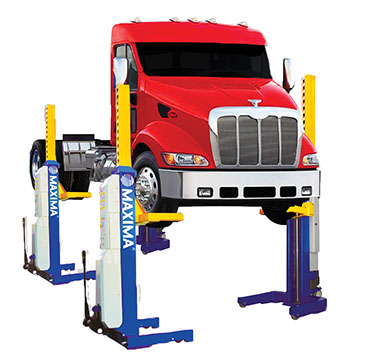

Expandable two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles

Dual Mechanical and Hydraulic Safety locking systems

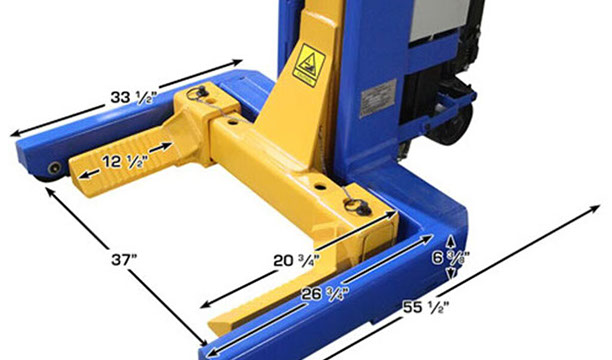

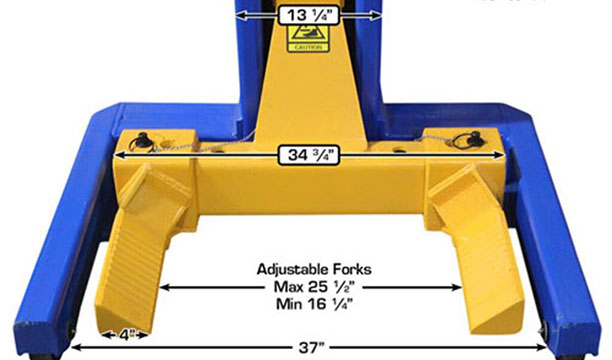

Multi-width wheel forks with locking pins accommodate the widest range of wheels eliminating the need for specialty wheel adapters

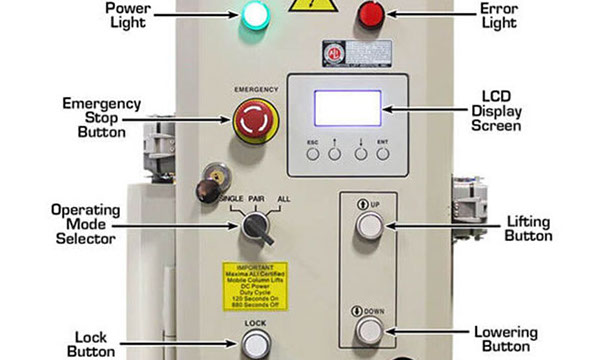

Smart electronics feature displays lifts height and self-diagnostics and self-calibration functions

Dual redundant PLC electronic synchronizing for level lifting

All electronic control system and hardware conforms to CE, CSA, ANSI, ASME, OSHA and UL regulations

Powder coated paint for extra-long protection

Solid one-piece column and heavy duty guide bearings for smooth operation

Manufactured using the latest laser and robotic processes

Electronic controlled trolley lock system for level columns

Each column is equipped with a warning light and audible alarm for critical warning alerts

Emergency shut off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator

Cabinet key lock included for each column

Industrial grade deep cycle gel batteries included

Auto charge feature for fast battery recharging

ISO 9001 and CE approved

MAXIMA's® 74,000 LB. Battery-Operated Mobile Column Lift System Specifications

Maximum Lift Capacity: 74,000 LBS. / 33,560 KL.

Lifting Capacity Per Column: 18,500 LB. / 8,400 KL

Column Configuration: Single / Pair / Four

Max. Lifting Height: 67" / 170 CM

Lifting Time with Maximum Load: 98 Seconds

Lowering Time with Maximum Load: 105 Seconds

Carriage Type: Adjustable

Min Tire Diameter: 19" / 43 CM

Max Tire Diameter: 44" / 112 CM

Power Supply: Dual 12V Industrial Grade Deep Cycle Battery with 120V Battery Charging System

Power Unit: 24V DC Electric Hydraulic

Motor: 2.2 Kw 24V DC motor with two batteries per column

Shipping Weight Per Column: 1,700 LB. / 771 KL. each

Shipping Dimensions: 49"L x 47"W x 89"H / 125 x 119 x 226 cm

2 Year Limited Warranty

Battery-Operated Mobile Column Lift System

Battery-Operated Mobile Column Lift System Manual

Download

Shipping, Unpacking, Installation, and Operation Training Video

1.6 MB
